Ready to use

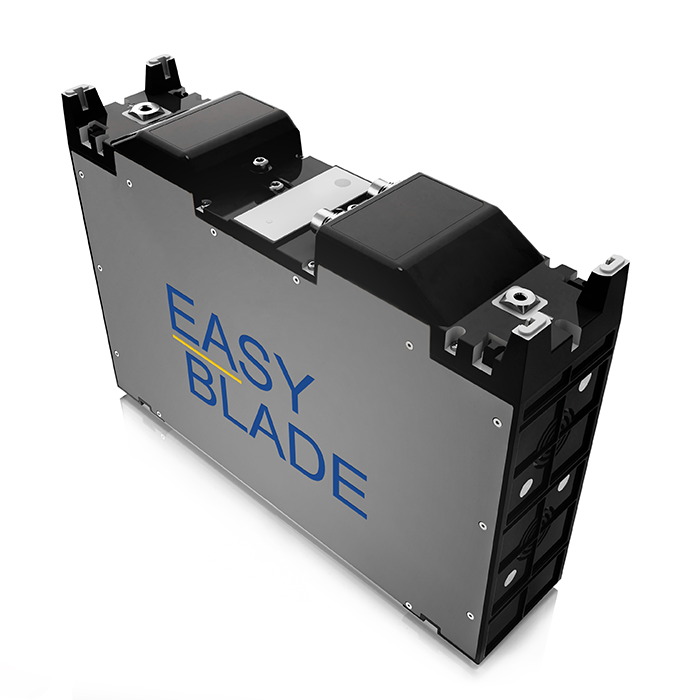

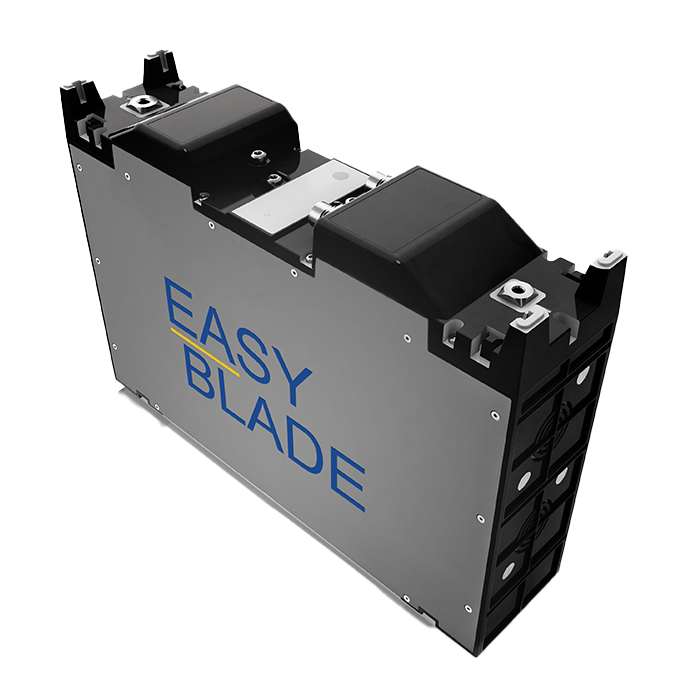

EasyBlade
If you are looking for a powerful and scalable battery module that is ready for immediate use, EasyBlade offers a standardised platform for flexible system architectures and efficient integration.
The battery module meets international certification standards and is ready for worldwide shipping. Thanks to its modular design and the ability to scale up to 25 units in parallel, EasyBlade offers maximum flexibility in system integration. Available as standard, clearly calculable and with a high degree of planning reliability – a battery module that sets new standards in efficiency and transparency.
Benefits
- The ability to scale up to 25 modules in parallel allows for flexible adaptation to different power requirements and system sizes.
- The intelligent battery management system (BMS) ensures stable performance and supports a long battery life.
- The master-slave concept continuously monitors and regulates relevant parameters, such as cell balance and temperature distribution, at both the cell and system levels.
- Essential battery data, such as state of charge, state of health and cycle status, can be accessed digitally via the CAN protocol to enable precise monitoring and process optimisation.
- The battery module is developed in Germany and manufactured in Europe with a focus on quality, safety and reliability.
Technical Information
| EasyBlade 24 | EasyBlade 36 | EasyBlade 48 | |
| Nominal capacity | 58 Ah | 44 Ah | 29 Ah |
| Certification | UN 38.3, IEC 62133-2:2017 | UN 38.3, IEC 62133-2:2017, UL2595, IEC60335 | UN 38.3, IEC 62133-2:2017, UL2595, IEC60335 |
| Discharge current | 31 A | 22,4 A | 15,5 A |
| Exp. cycle life at (0.3 C / 0.5 C), 22 °C ± 2 °C | ≥ 80 % of initial capacity at 1.200 cycles | ≥ 80 % of initial capacity at 1.200 cycles | ≥ 80 % of initial capacity at 1.200 cycles |
| Charging temperature | 0 to 55°C | 0 to 55°C | 0 to 55°C |
| Discharge temperature | -20 to 55°C | -20 to 55°C | -20 to 55°C |
| Watt-Hour Rating | 1.502 Wh | 1.658 Wh | 1.502 Wh |
